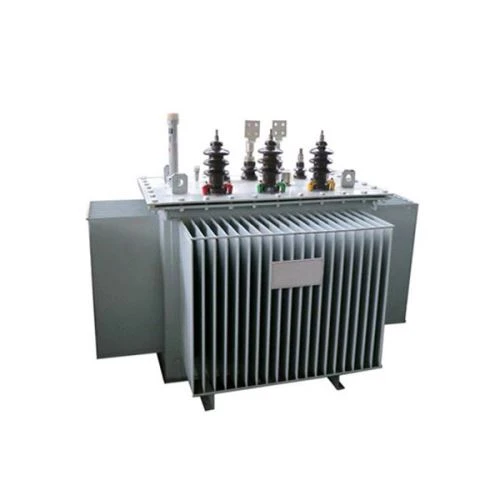

3 Theem 2500 Kva Roj Filled Transformer

Nta 1. Lub transformer hlau tub ntxhais yog tsim los ntawm stacking imported high-zoo txias-kuav los tiag silicon steel nplooj ntawv, uas zoo heev txo tsis muaj-load poob thiab tsis-load tam sim no, thiab khi cov tub ntxhais hlau los xyuas kom meej lub compactness ntawm cov tub ntxhais thiab txo suab nrov. . 2. High- thiab low-voltage windings yog ua los ntawm ...

Xa kev nug

3 theem 2500 kva roj puv transformer:

1. Rated peev: 30 ~ 2500kVA

2. Rated HV: 6kV txog 11kV

3. Rated LV: 0.4kv

4. Zaus: 50Hz lossis 60Hz

5. Cov txheej txheem txias: ONAN

6. Tapping Range: ± 5% ± 2x2.5%

7. Theem: Ib theem lossis peb theem

8. Cov cim kev sib txuas:Yyn0 lossis Dyn11

Thov sau tseg nws kuj tuaj yeem ua raws li tus neeg siv khoom xav tau.

Thov qhia peb cov kev ntsuas kev, thiab peb yuav hais koj qhov zoo tshaj plaws.

Scope ntawm kev siv:

3 theem 2500 kva roj puv transformer yog ib qho ntawm cov khoom siv tseem ceeb hauv cov khoom siv hluav taws xob thiab kev faib khoom ntawm kev lag luam thiab kev lag luam mining thiab pej xeem vaj tse. Nws txo qhov 10 (6) kV lossis 35kV network voltage rau 230/400V tsheb npav voltage siv los ntawm tus neeg siv. Cov khoom no yog tsim rau AC 50 (60) Hz, peb-theem siab tshaj plaws muaj peev xwm 2500kVA (ib theem siab tshaj plaws muaj peev xwm 833kVA, ib-theem transformer feem ntau tsis pom zoo), tuaj yeem siv sab hauv tsev (sab nraum zoov), thaum lub muaj peev xwm yog 315kVA thiab hauv qab no tuaj yeem ntsia tau rau ntawm tus ncej.

Technical Parameter ntawm 3 theem 2500 kva roj puv transformer:
