Product Description

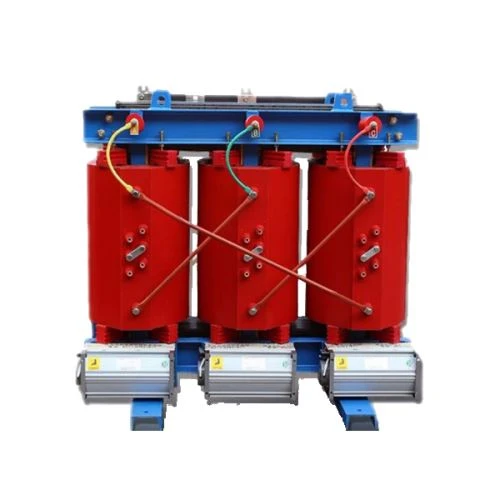

Unencapsulated H-class peb-lub thawv qhuav-hom transformer, lub kauj siv Nome ntawv ua cov khoom siv insulating, thiab yog impregnated nrog cov xim tsis muaj kuab heev los ntawm lub tshuab nqus tsev siab rau ntau zaus, thiab kho thaum kub siab. Cov pa phem, tsis muaj kuab paug rau ib puag ncig, kev saib xyuas yooj yim thiab lwm yam zoo. Nws muaj cov qauv tsim, tsim nyog qauv thiab zoo nkauj tsos. Cov ntsuas kev ua haujlwm tseem ceeb yog qhov zoo dua li cov qauv hauv tsev, thiab tuav cov khoom siv hluav taws xob zoo thiab cov khoom siv hluav taws xob thoob plaws lub neej kev pabcuam. Feem ntau haum rau kev xav tau hluav taws kub

Nyob rau hauv ib puag ncig uas muaj kev hloov pauv loj thiab qhov chaw qias neeg, xws li cov tsev siab, tshav dav hlau, chaw nres tsheb, chaw nres tsheb, subways, tsev kho mob, fais fab nroj tsuag, metallurgical industries, khw muag khoom, chaw muaj neeg coob, thiab petrochemical, nuclear fais fab nroj tsuag, nuclear submarines thiab lwm qhov chaw.

Main specifications thiab technical data:

Rated Peev Xwm	Pab pawg A				Pab pawg B				Short-circuit impedance (%)
	Load poob (W)	Load poob nyob rau hauv txawv rwb thaiv tsev kub tsis kam (W)			Load poob (W)	Load poob nyob rau hauv txawv rwb thaiv tsev kub tsis kam (W)
	Load poob (W)	B (100 degree)	F (120 degree)	H (145 degree)	Load poob (W)	B (100 degree)	F (120 degree)	H (145 degree)
30	190	670	710	760	180	700	740	790	4.0
50	270	940	1000	1070	250	1010	1060	1140
80	370	1290	1380	1480	330	1370	1470	1570
100	400	1480	1570	1690	360	1600	1690	1830
125	470	1740	1850	1980	420	1870	1980	2120
160	540	2000	2130	2280	490	2120	2320	2480
200	620	2370	2530	2710	580	2550	2690	2880
250	720	2590	2760	2960	660	2880	3070	3300
315	880	3270	3470	3730	780	3450	3690	3970
400	980	3750	3990	4280	890	4100	4350	4640
500	1160	4590	4880	5230	1040	4870	5160	5530
630	1340	5530	5880	6290	1200	5810	6140	6560
630	1300	5610	5960	6400	1160	5950	6330	6800	6.0
800	1520	6550	6960	7460	1370	6960	7380	7900
1000	1770	7650	8130	8760	1560	8250	8730	9420
1250	2090	9100	9690	10370	1810	9830	10390	11140
1600	2450	11050	11730	12580	2400	11990	12770	13650
2000	3050	13600	14450	15560	2700	14450	15300	16540
2500	3600	16150	17170	18450	3150	17380	18420	19720
1600	2450	12280	12960	13900	2400	12930	13720	14690	8.0
2000	3050	15020	15960	17110	2700	15770	16720	18060
2500	3600	17760	18890	20290	3150	18700	19840	21330
